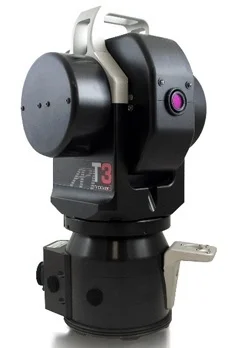

API T3 Laser Tracker
$ SOLD $
The API Tracker3 is among the best of laser tracker when it comes to accuracy, range, and mobility. The T3 is the ideal instrument for various job types, large or small. Along with its top-notch precision, the T3 proves to be user-friendly and brings forth effortless simplicity for any metrology job.
Performance Specifications
Linear Range (Diameter): 30 m - 120 m
Angular Range: ± 320º (640º end to end)
Angular Accuracy: 3.5 μm/m
Max Lateral Target Speed: > 4 m/s
System Resolution: 0.1μm
Laser Accuracy: > 0.5 ppm
Weight: 8.5 kg
Size: 185 mm x 190 mm x 360 mm
Air Temperature: -10ºC to > 45ºC (14ºF to > 113ºF)
